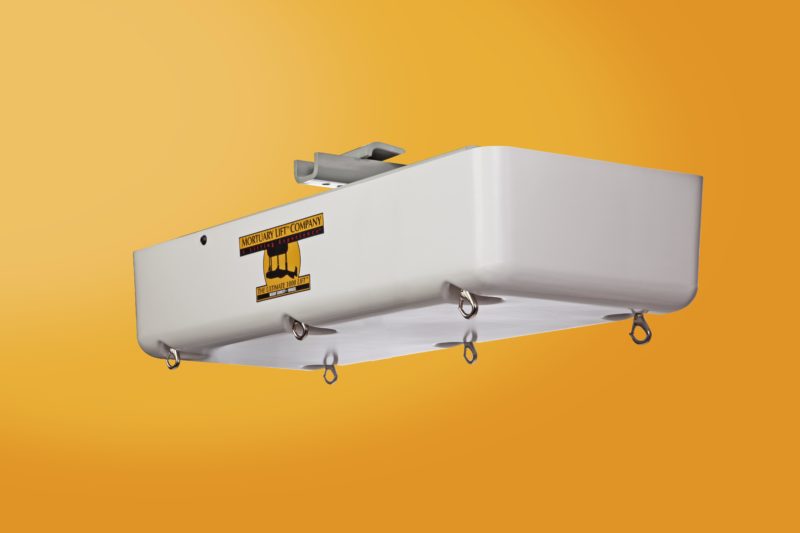

SPECIFCIATIONS FOR

LIFT

  • DIMENSIONS: 46” (L) X 18” (W) X 11” (D)
  • CEILING MOUNTED: STATIONARY OR WITH TRACK SYSTEM
  • HEAD ROOM:
    • STATIONARY LIFT: 8 INCH DROP FROM CEILING
    • LIFT W/ TRACK: 17 INCH INCH DROP FROM CEILING – WHERE LIFT IS PARKED
  • CAPACITY: 1000 POUNDS
  • POWER REQUIREMENTS:
    • 110V (CAN BE WIRED FOR INTERNATIONAL SALES)
    • 15 AMPS. (PLUGS INTO A THREE PRONGED OUTLET)
  • POWER OUTLET LOCATION:
    • STATIONARY: 2′ FROM END OF MACHINE
    • TRACK SYSTEM: 2 1/2′ FROM END OF TRACK WHERE MACHINE IS PARKED WHEN NOT IN USE
  • WEIGHT OF MACHINE: 180 POUNDS
  • CAPABILITY: SUPPORTS ANY LENGTH AT ANY HEIGHT OF REMAINS UP TO 1000 POUNDS
  • COVER: A WHITE HYGIENIC COVERING
  • MAINTENANCE: MINIMAL
  • WARRANTY: 6 MONTHS PARTS AND LABOR, 1 YRS. PARTS, 10 YEARS ON THE BASE OF MACHINE *Limited warranty, call for details
  • LIFE EXPECTANCY OF ULTIMATE 1000 LIFTTM: 30 YEARS

TRACK

  • CAPACITY: 1000 POUND LIFTING CAPACITY
  • WEIGHT OF TRACK: 6.6 POUNDS PER FOOT
  • RAILS: STEEL
  • DO NOT RECESS TRACK. DO NOT RUN TRACK WALL TO WALL. 15″ GAP TO ALLOW FOR TROLLEY INSERTION AND REMOVAL.
